Avante Integra SP VSO2 Portable Anesthesia Machine

Details

The Gold Standard in Portable Anesthesia

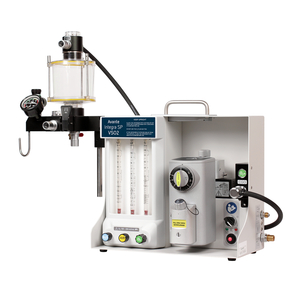

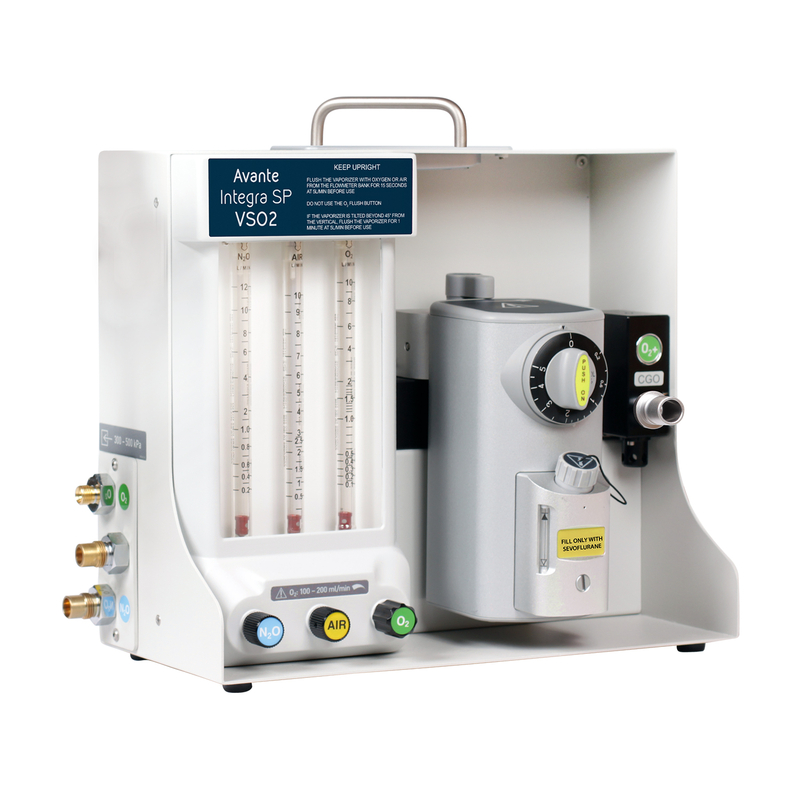

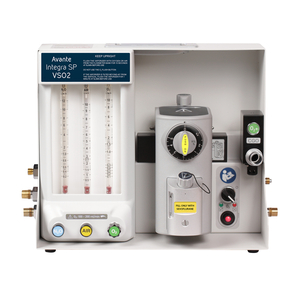

The Avante Integra SP VSO2 is a fully-functional, compact and portable anesthesia system in a lightweight package. The Integra SP VSO2 anesthesia system is compact enough for the smallest surgery or imaging suite, and is fully portable.

Easily transport the Avante Integra SP VSO2 by using the retractable handle, located conveniently on top of the unit. Side-located gas ports allow clinicians to safely and efficiently set up the machine.

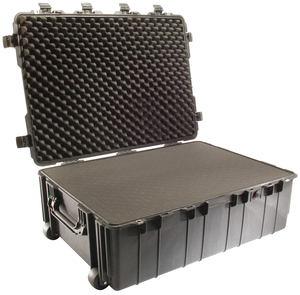

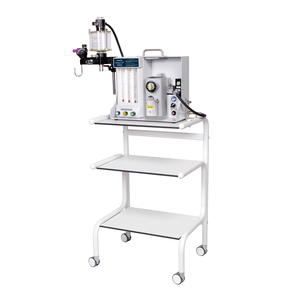

In keeping with Avante's commitment to quality, all Integra SP anesthesia systems include a two-year manufacturer's warranty. The Avante Integra SP VSO2 is available with a hardshell carrying case, complete with casters and a retractable handle. A convenient mobile trolley with a sturdy built-in shelf is also available.

Specifications

Physical Weight & Dimensions

• Height: 13.8 inches (35 cm)
• Width: 19.7 inches (50 cm)
• Depth: 7.9 inches (20 cm)
• Weight (without vaporizer): 26 lbs (12 kg)

Flowmeters

• Flow Range: Oxygen / Air: 0 - 10 L/min
• Flowmeter Accuracy: ± 2.5% full scale reading
• Flowmeter construction and dimensions: Tubes and floats are matched, and must not be interchanged. Flowmeter tubes have antistatic coatings

Oxygen Failure Warning Devices

• Gas system whistle
• Visual indicator, direct pressure operated

Oxygen Flush

• Button on front edge worksurface
• The system supplies 35 - 75 L/min when the button is fully depressed

Mechanical AHD System

• Minimum oxygen concentration: 30% ± 3% ( total O2 + N2O flow)
• Basal flow - oxygen: 100 - 200 mL/min

Environmental

• Operating Temperature: + 10 to 38°C (50 to 100°F)
• Operating Atmospheric Pressure Range: 70 to 106 kPa
• Operating Altitude: 2438 m (8000 ft) maximum
• Operating Humidity: 10 - 85% R.H. non-condensing
• Transport / Storage Temperature: -5 to 40°C (23 to 104°F)
• Cleaning: Wipe external surfaces with dry or damp cloth. Use mild soap, or disinfectant solution if necessary.
